Polypropylene Diaphragma Pump

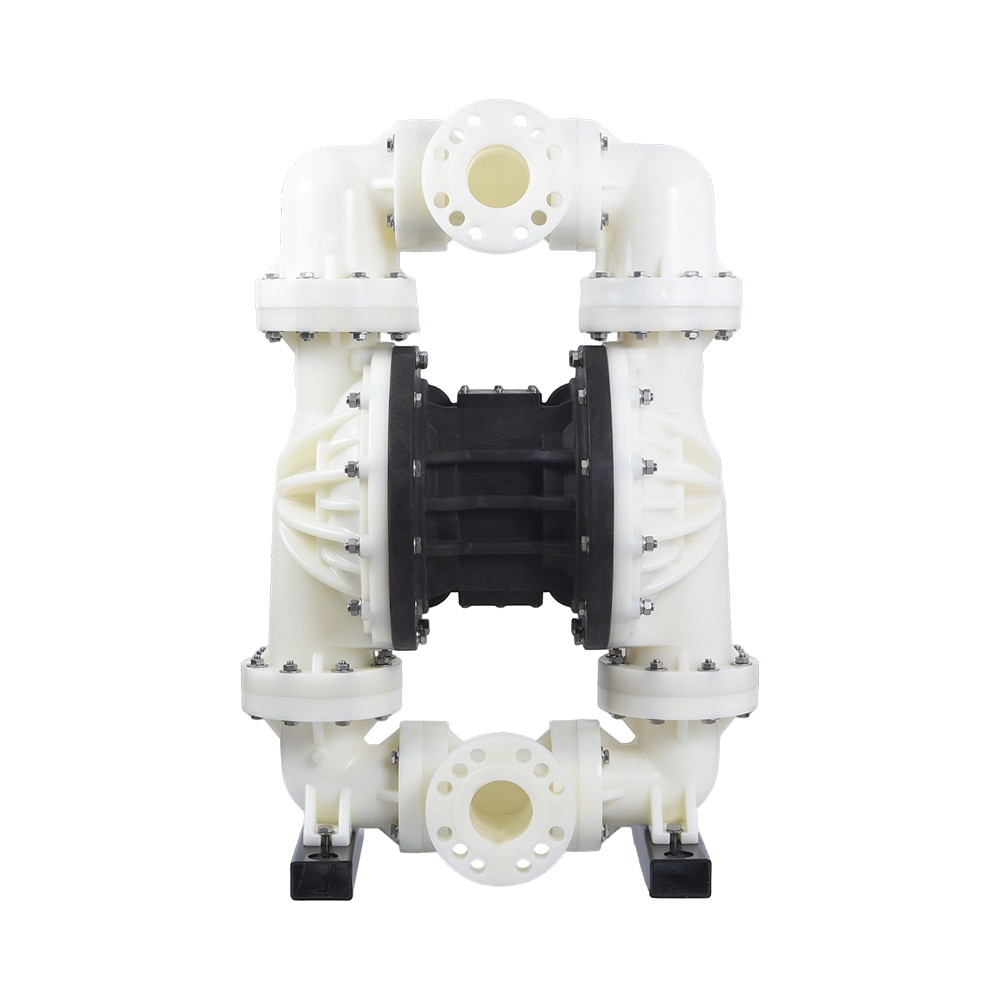

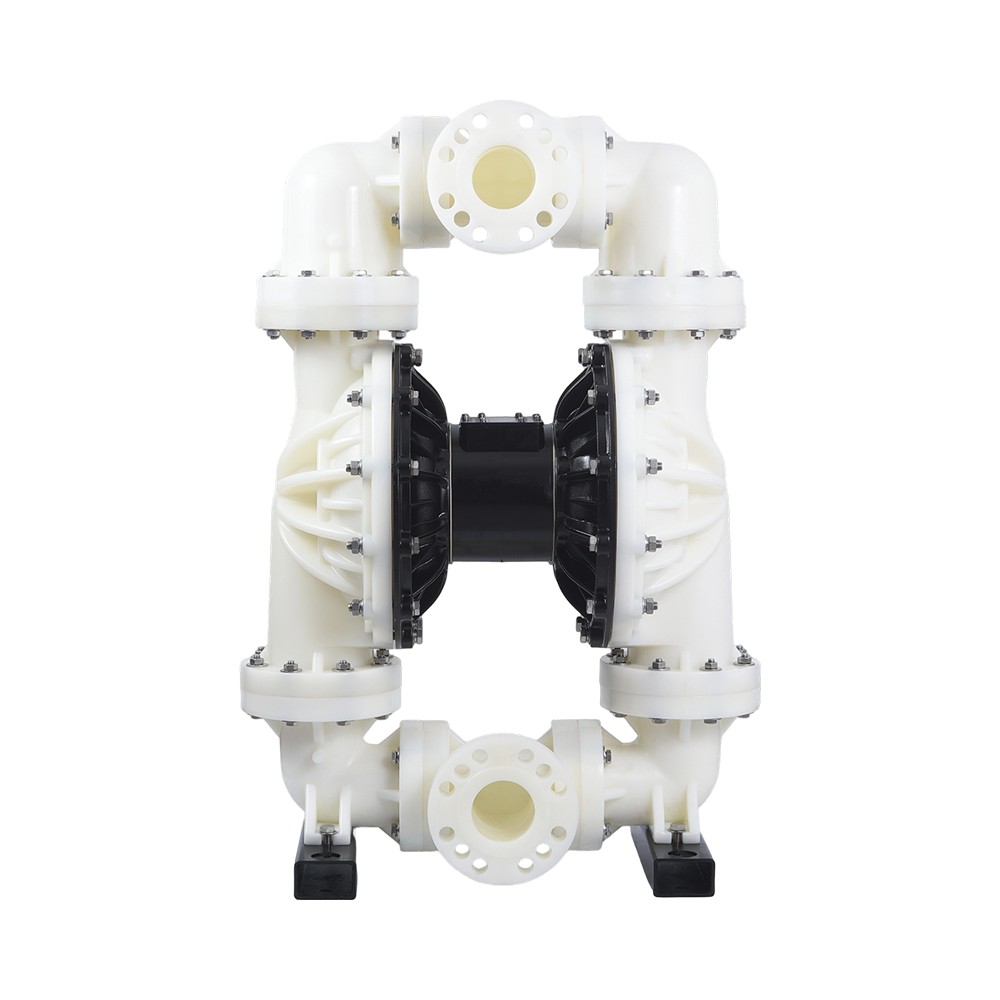

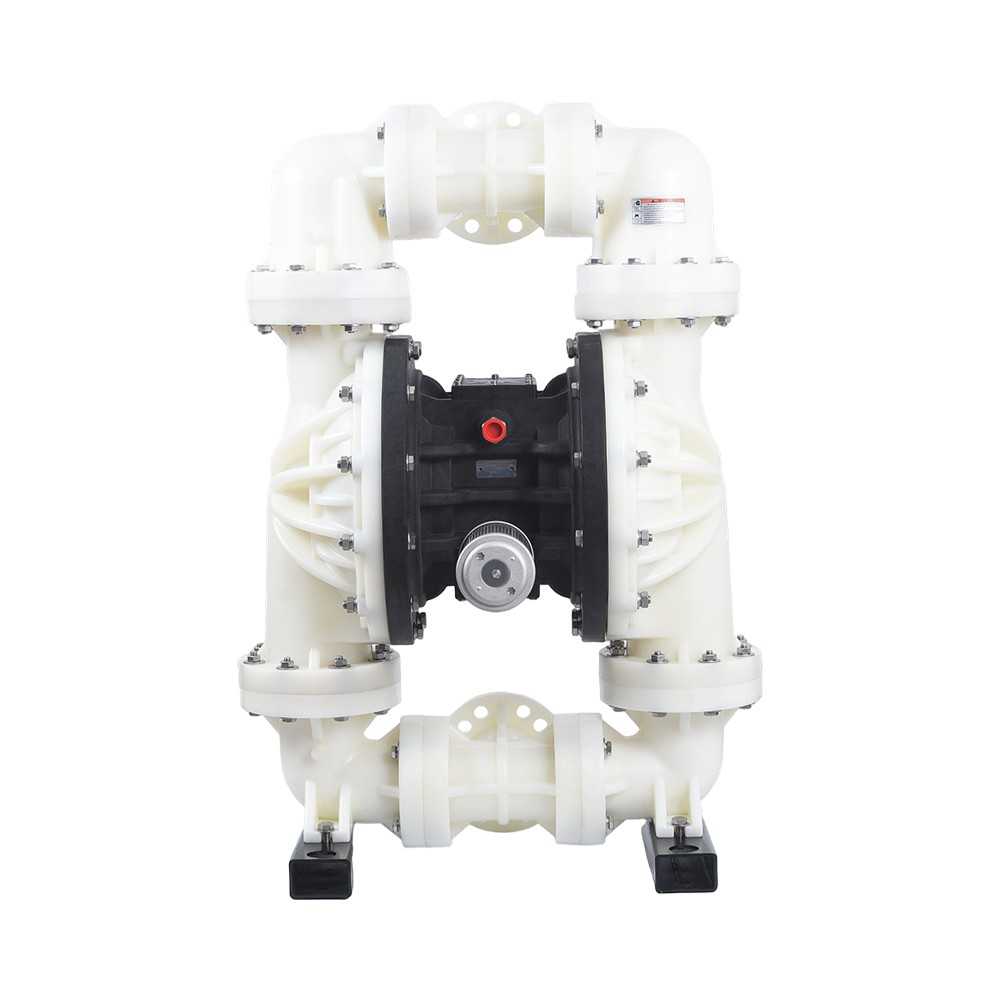

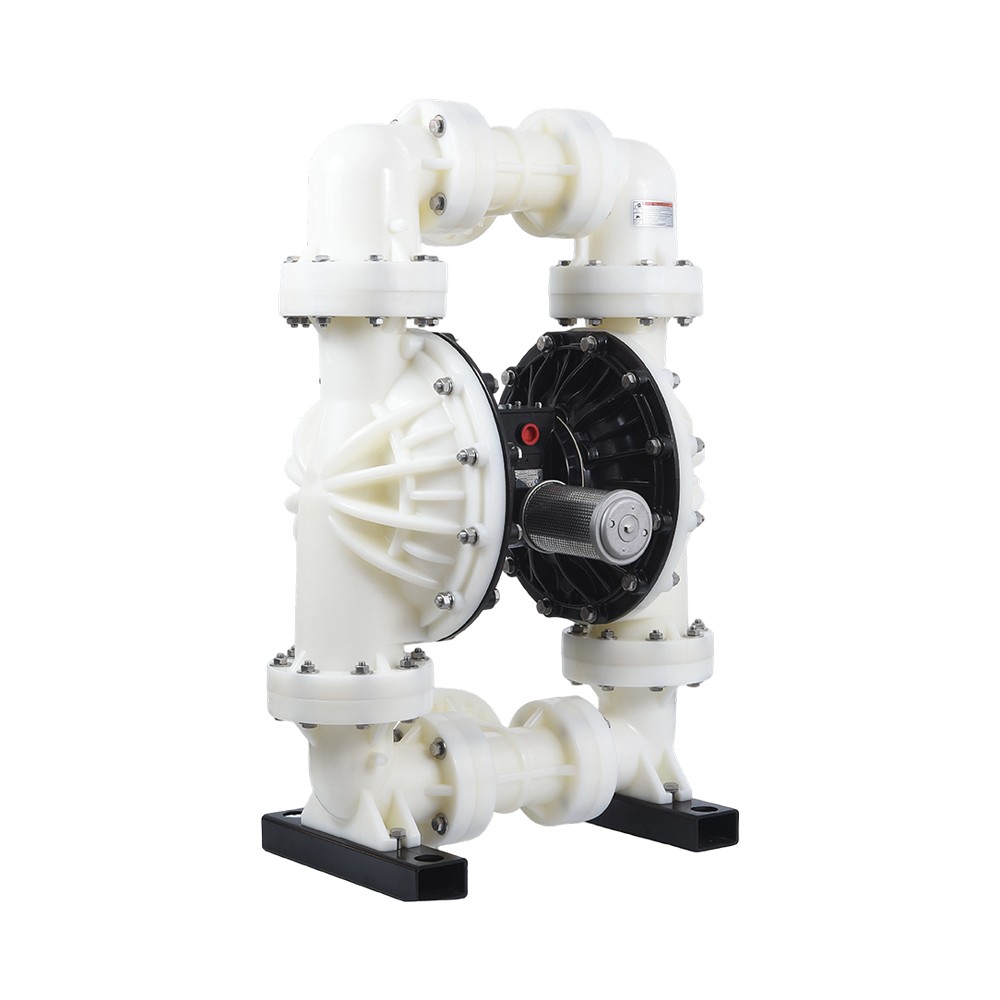

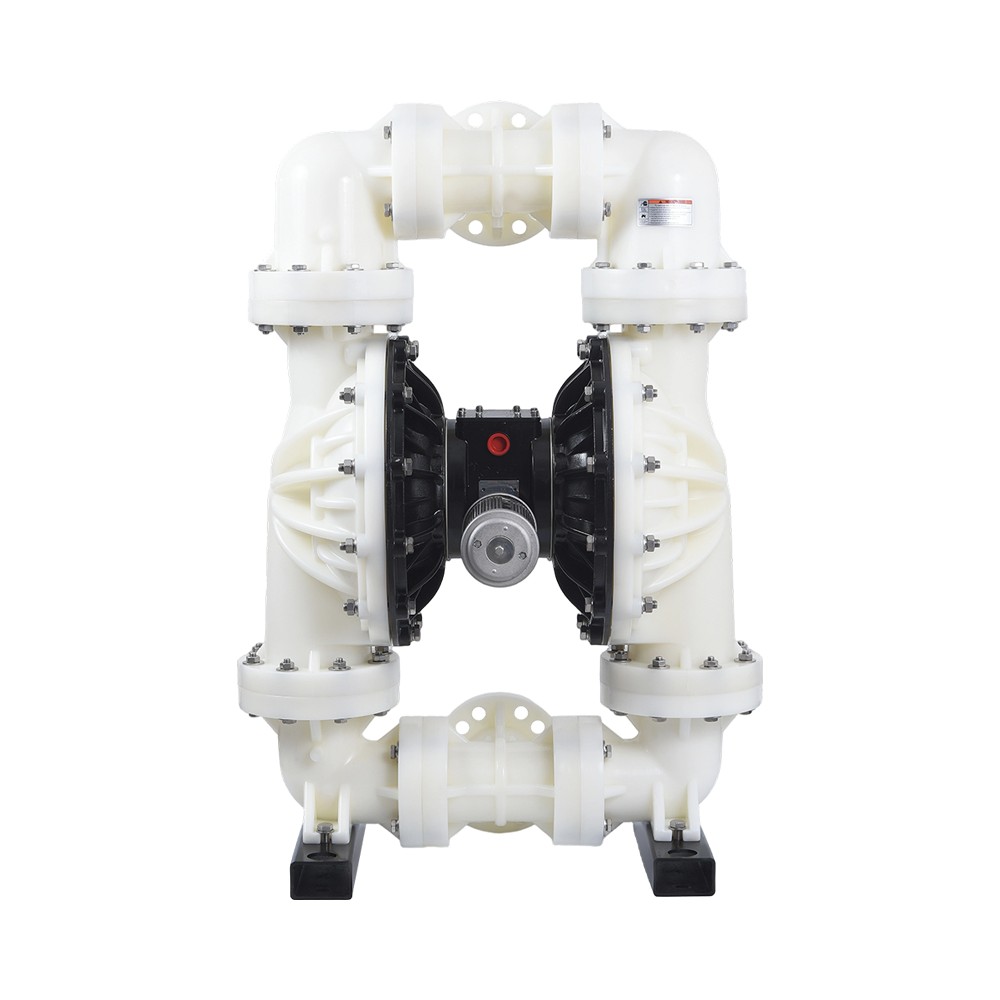

3" PP diaphragma sentinam

  • 3
  • 3
  • 3
  • 3
  • 3
  • 3
Nullus prior articulum   |   DEINDE

+ Contact us

Product Description

Liquor lingua / exitus magnitudine

3"

Aeris diverticulum magnitudine

3/4"

Max vitae suctu

Arida: 5m Infectum: 8m

Max solidum transitum

9.4mm

Max fluxus rate

1060L/min

Max partus caput

84m

Max aeris pressura

8.4bar

Max solidum transitum

9.4mm

Max aeris consummatio rate

325scfm (9.1m³/min)

Summa materia

PP

Curva euismod:

Technicam parametri

Maximilianus. Suctionis Leva

Altitudo suctionis mutatur cum diversis compagibus pilae, sedis et diaphragmatis materiae.

siccum 5m

infectum 8m

Maximilianus. particula diametri

9.4mm

Suctionis et missionis magnitudine

3in /Npt/F

Aeris diverticulum magnitudine

3/4 in

Maximilianus. influunt rate

1060 L/min

Maximilianus. caput

84m

Maximilianus. aeris lingua pressura

8.4bar

Maximilianus. aer consummatio

325scfm(9.1m³/min)

Summa materia

PP  PVDF

Installation magnitudine
