Home / Products / Diaphragma pneumaticum Pump / Kynar（PVDF） Diaphragma Pump / 1/4" PVDF diaphragma sentinam
  • 1/4
  • 1/4
Kynar（PVDF） Diaphragma Pump

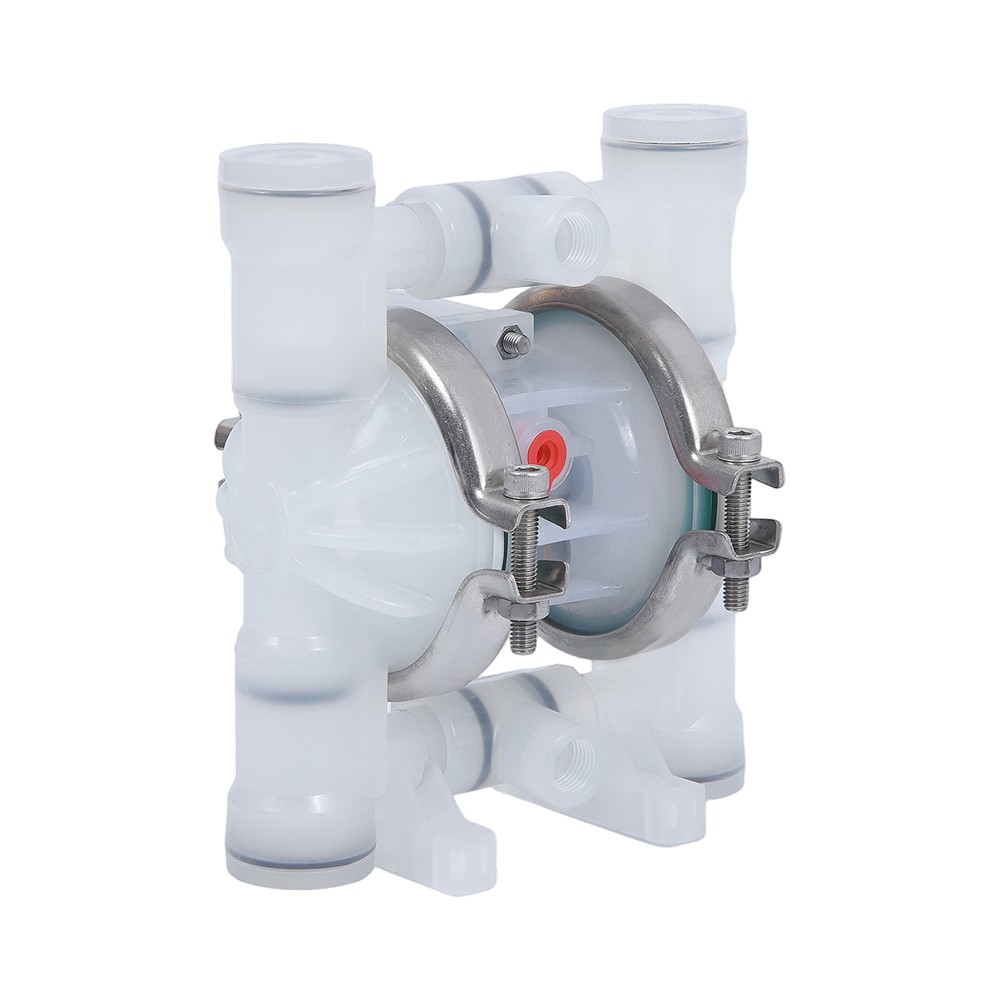

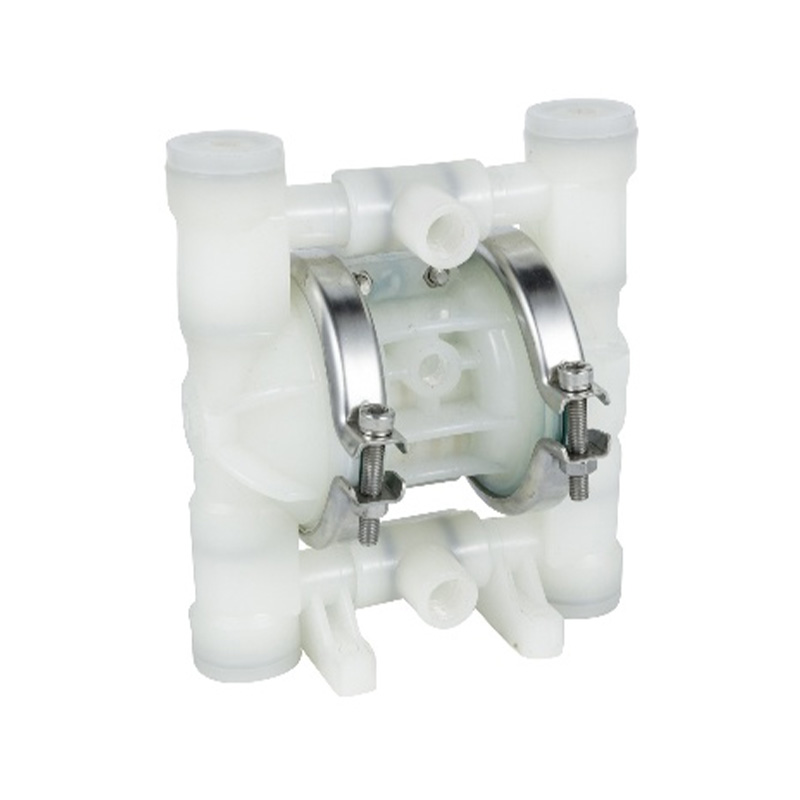

1/4" PVDF diaphragma sentinam

  • 1/4
  • 1/4
PREV   |   Nullus proximus articulum

+ Contact us

Product Description

Liquor lingua / exitus magnitudine

1/4"

Aeris diverticulum magnitudine

1/8"

Max vitae suctu

Arida: 3m Infectum: 7m

Max solidum transitum

0.4mm

Max fluxus rate

18L/min

Max partus caput

84m

Max aeris pressura

8.4bar

Max solidum transitum

0.4mm

Max aeris consummatio rate

8.5scfm (0.24m³/min)

Summa materia

PVDF

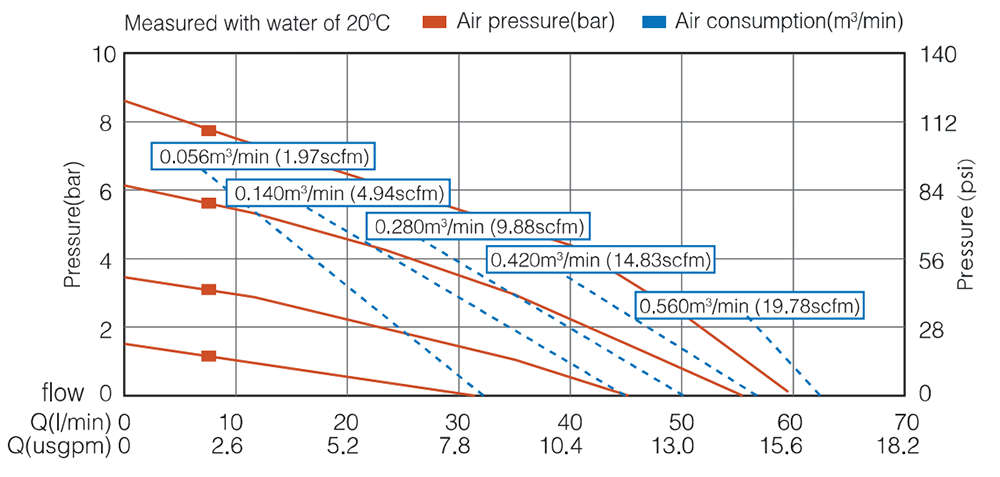

Curva euismod:

Technical parametri

Maximilianus. Suctionis Leva
Altitudo suctionis mutat cum diversis compagibus pilae, sedis et saeptum materiae.

arida 3m
infectum 7m

Maximilianus. particula diametri

0.4mm

Suctionis et missionis amplitudo

1/4in /Npt

Aeris diverticulum magnitudine

1/8in/Npt

Maximilianus. influunt rate

18 L/min

Maximilianus. caput

84m

Maximilianus. aeris lingua pressura

8.4bar

Maximilianus. aer consummatio

8.5scfm(0.24m³/min)

Summa materia

PP PVDF

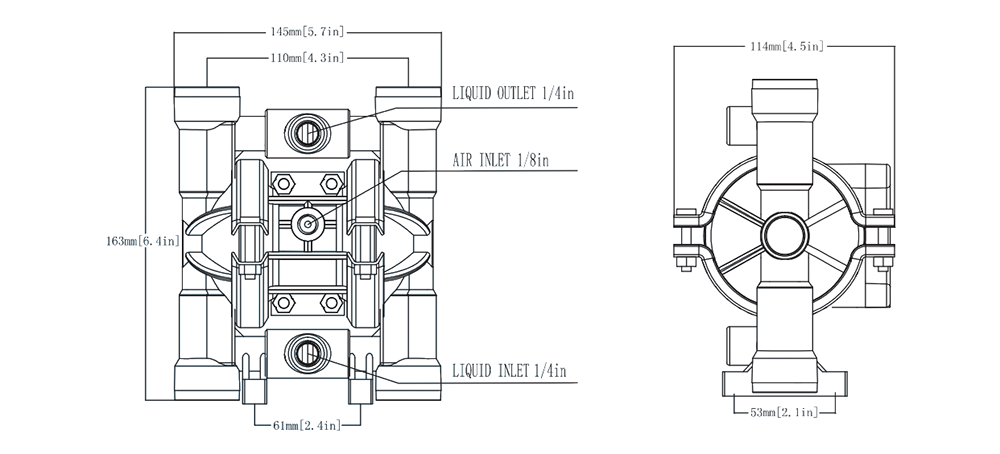

Installation magnitudine

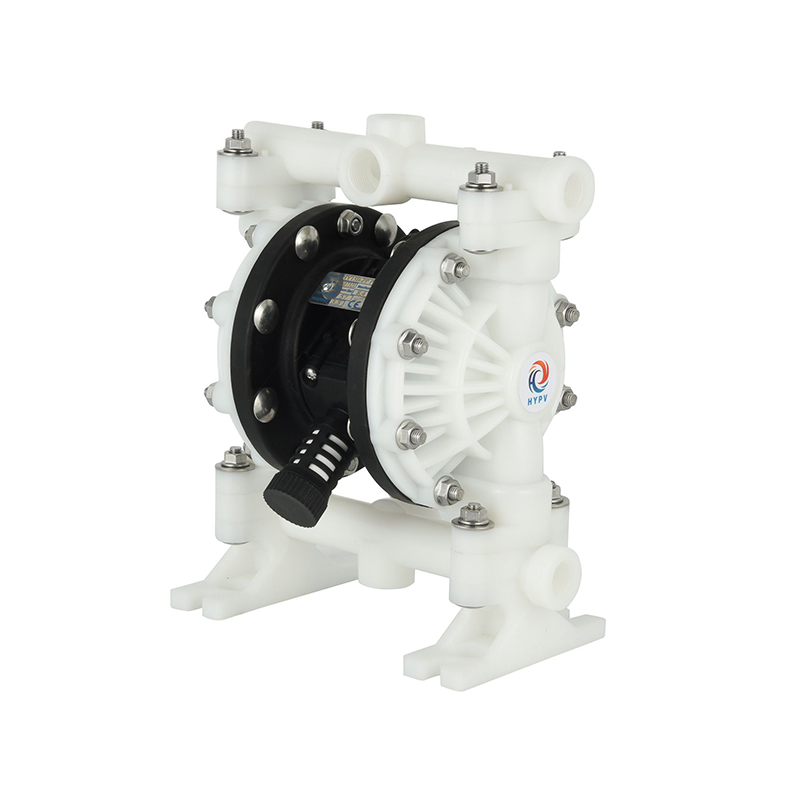

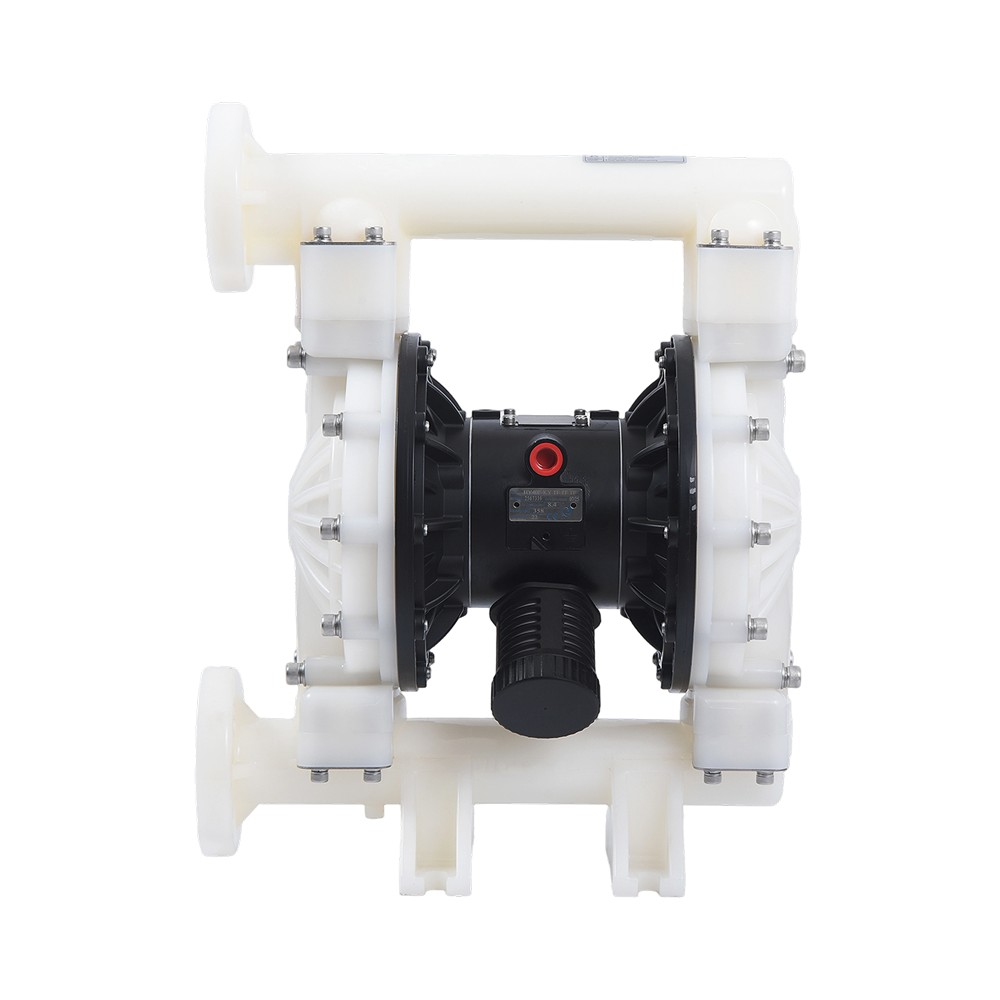

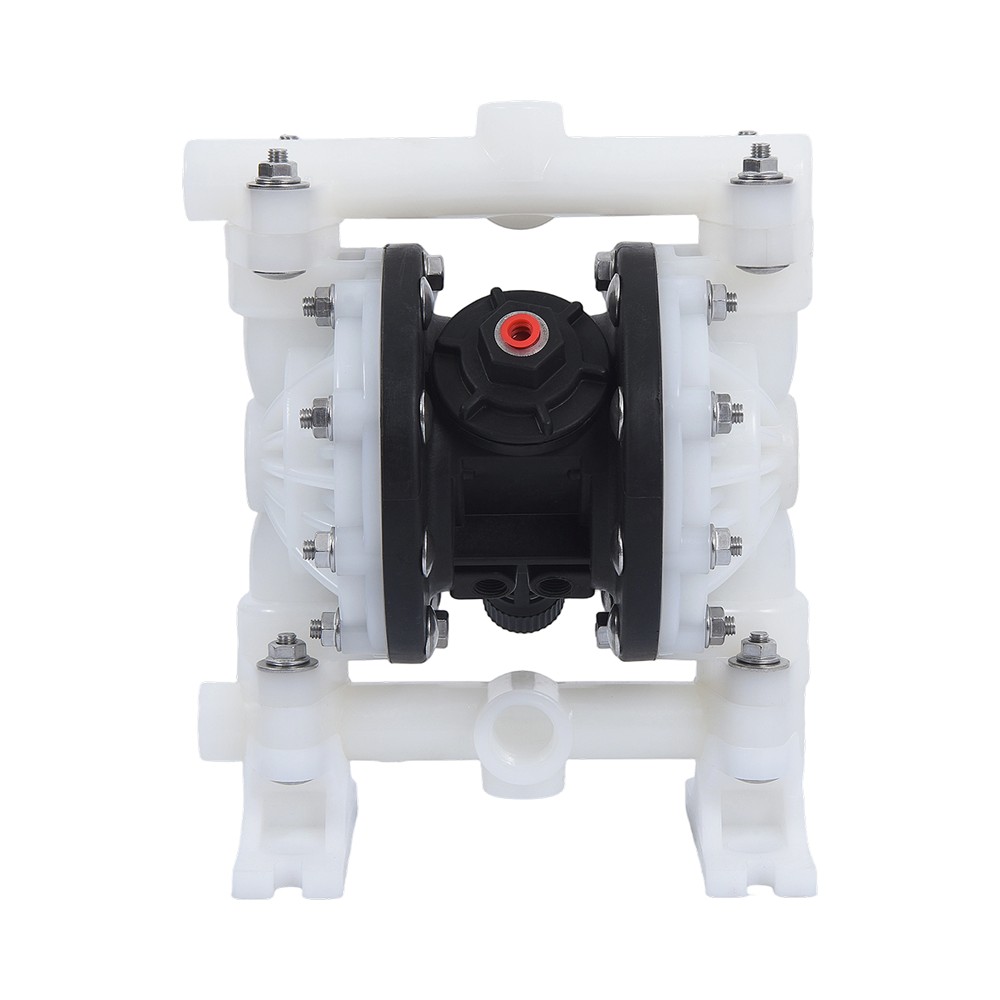

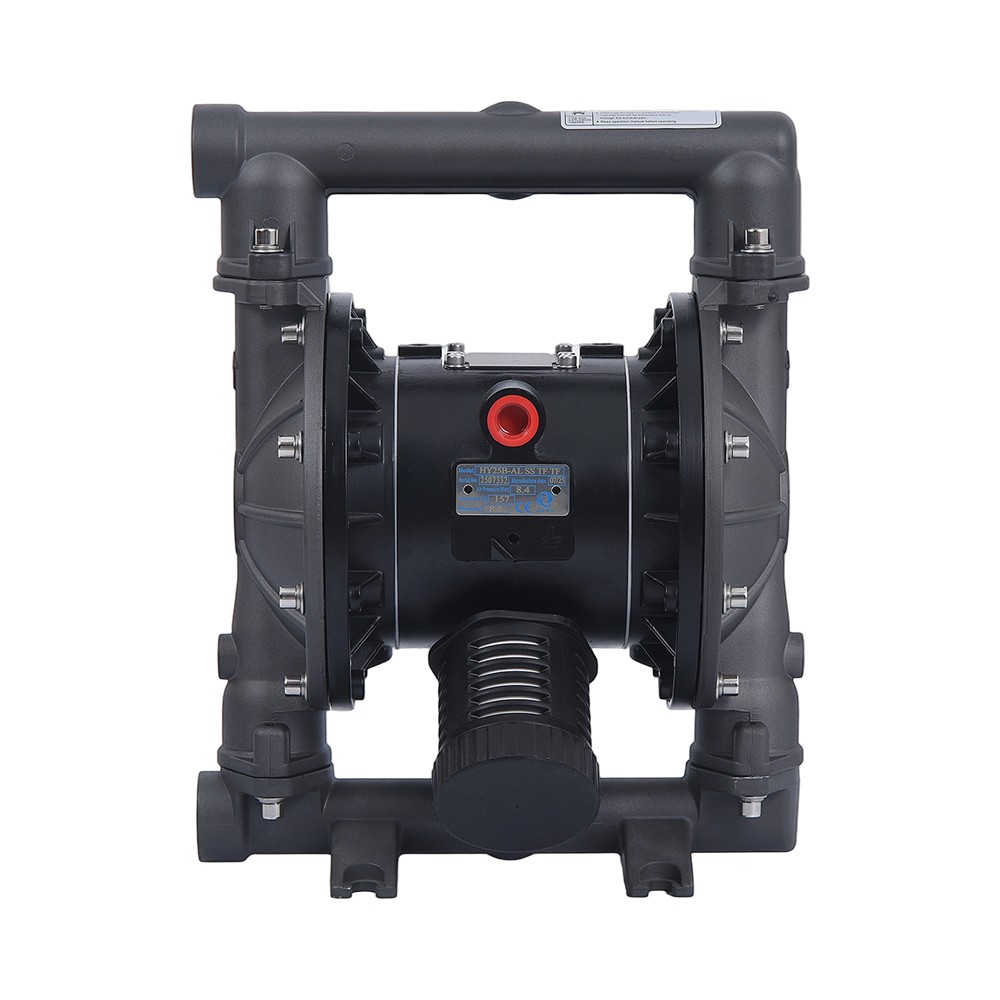

Related products
