Kynar（PVDF） Diaphragma Pump

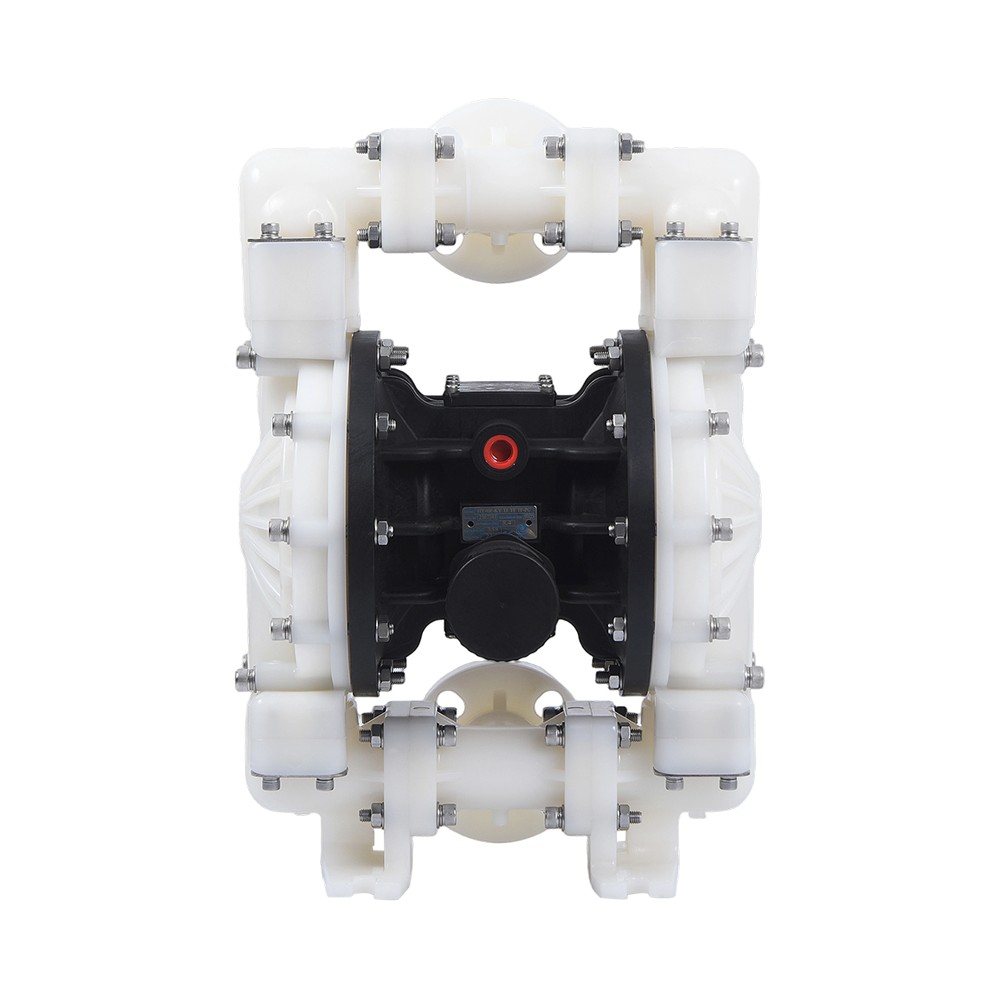

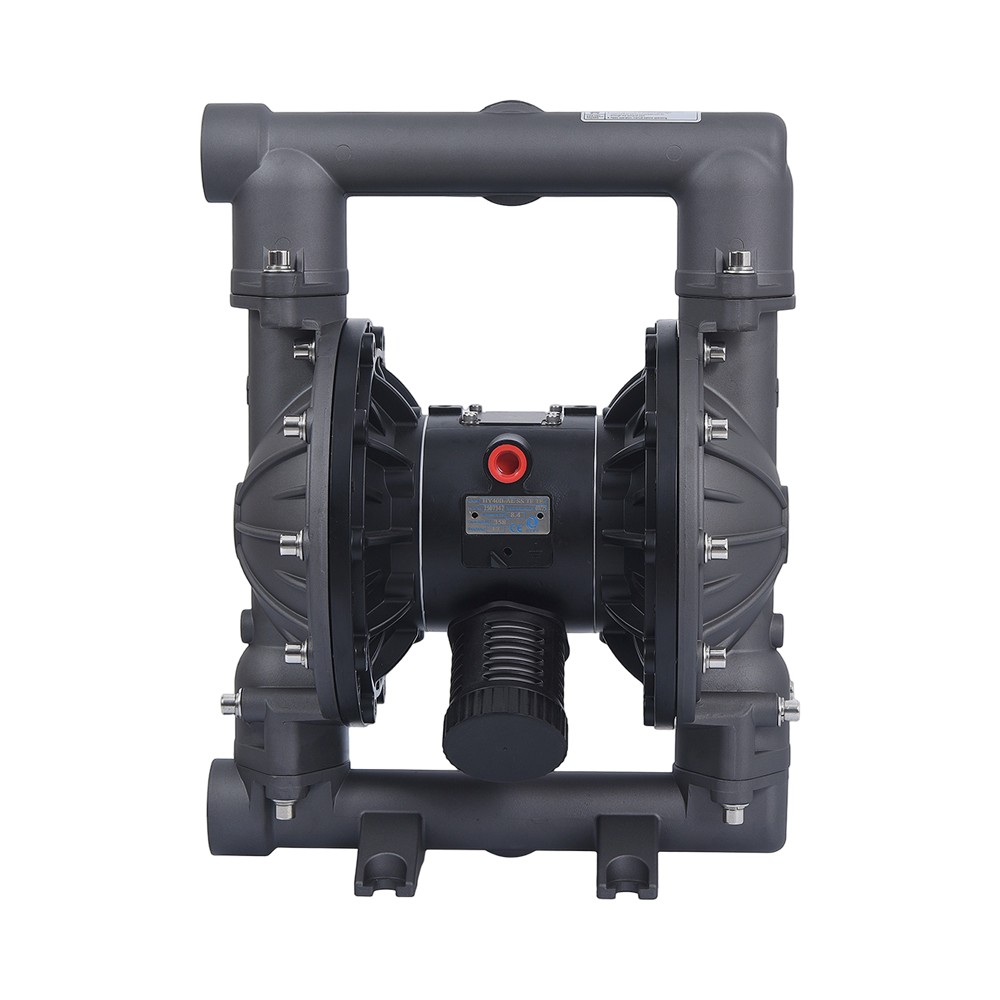

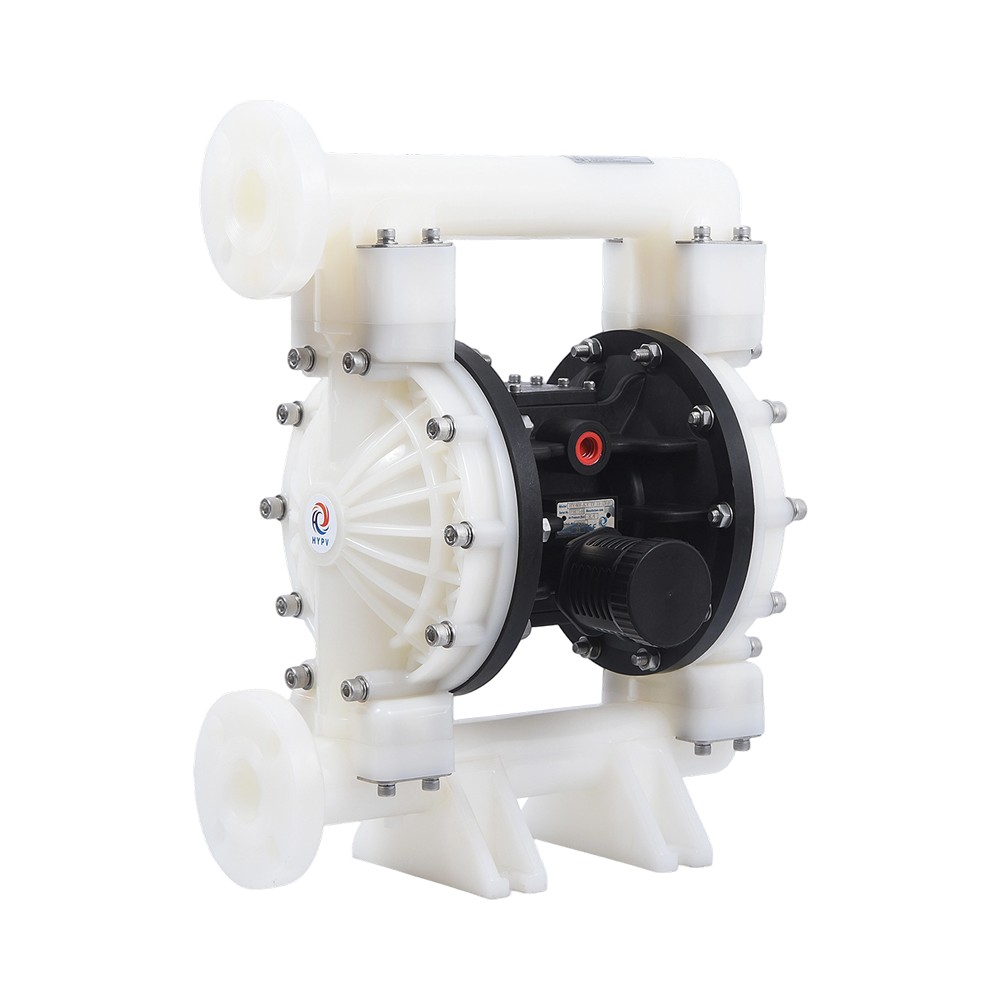

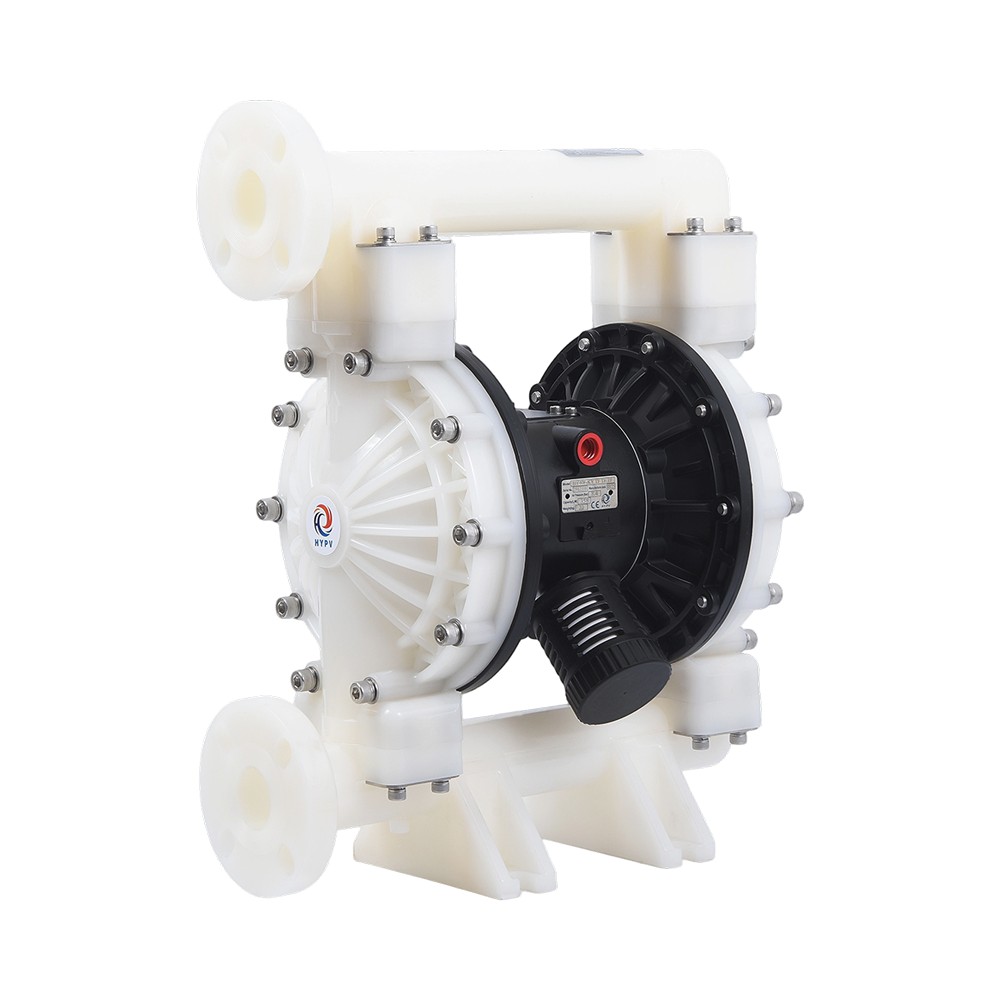

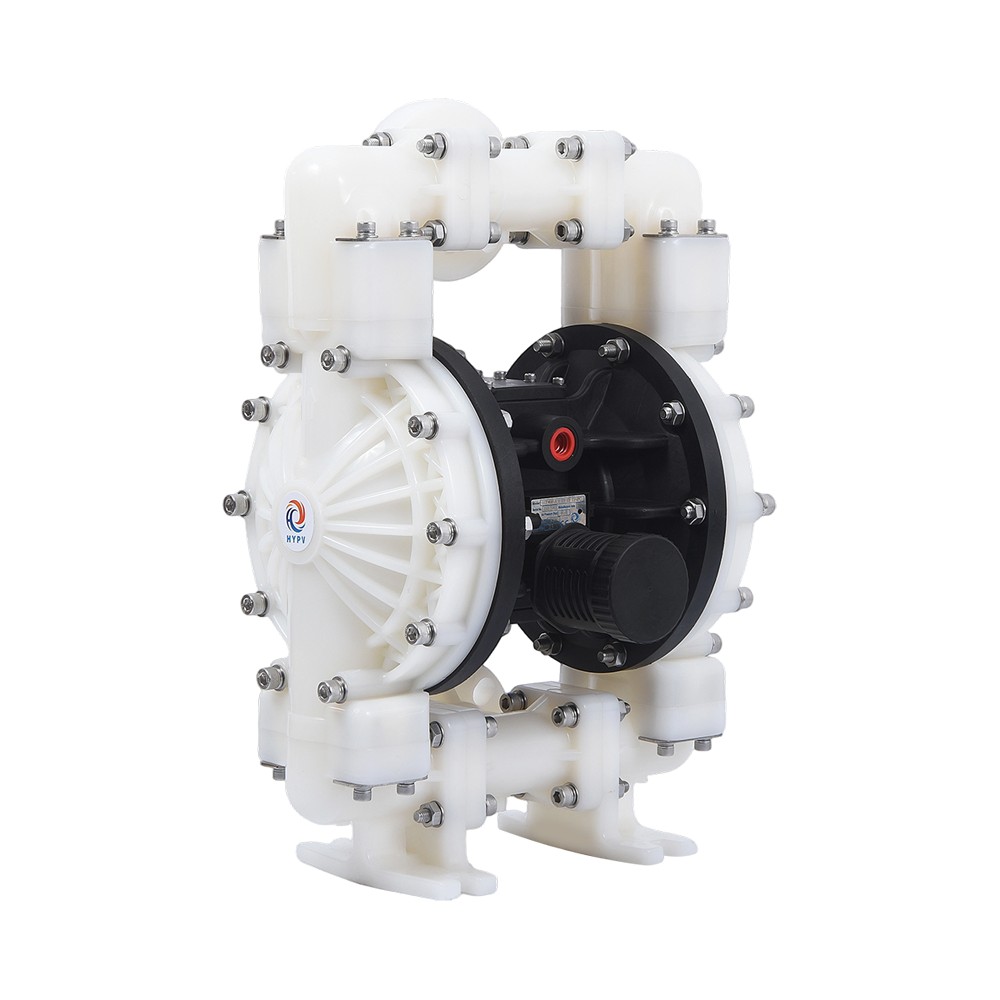

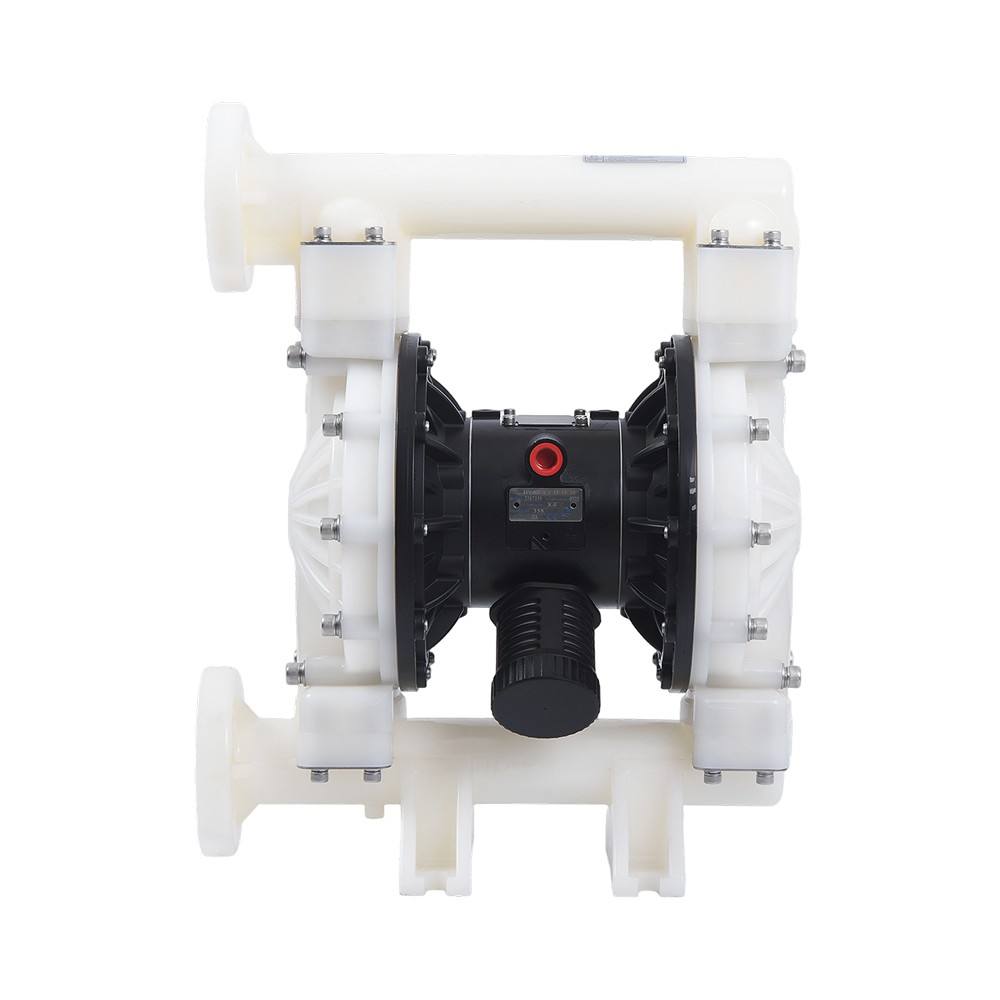

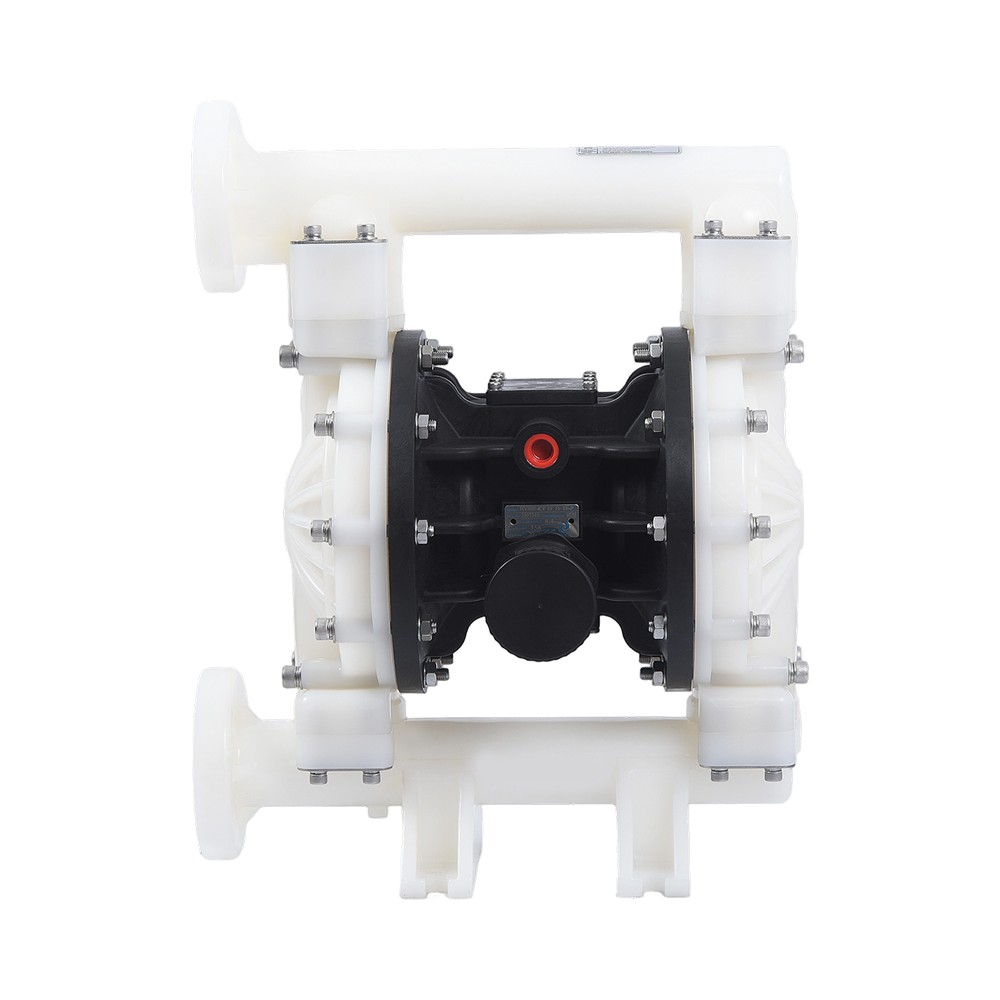

1-1/2" PVDF diaphragma mollis

  • 1-1/2
  • 1-1/2
  • 1-1/2
  • 1-1/2
  • 1-1/2
  • 1-1/2
PREV   |   DEINDE

+ Contact us

Product Description

Liquor lingua / exitus magnitudine

1.5"

Aeris diverticulum magnitudine

1/2"

Max vitae suctu

Arida 5m Infectum 8m

Max solidum transitum

5mm

Max fluxus rate

358L/min

Max partus caput

84m

Max aeris pressura

8.4bar

Max solidum transitum

5mm

Max aeris consummatio rate

125scfm (3.5m³/min)

Summa materia

PVDF

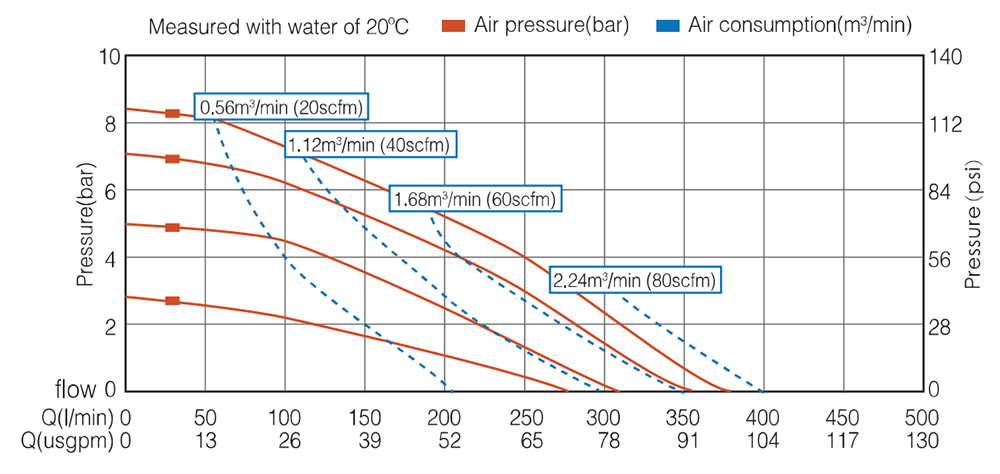

Curva euismod:

Technical parametri

Maximilianus. Suctionis Leva
Altitudo suctionis mutat cum diversis compagibus pilae, sedis et saeptum materiae.

siccum 5m
infectum 8m

Maximilianus. particula diametri

5mm

Suctionis et missionis amplitudo

1÷in /Npt/F

Aeris diverticulum magnitudine

1/2in

Maximilianus. influunt rate

358 L/min

Maximilianus. caput

84m

Maximilianus. aeris lingua pressura

8.4bar

Maximilianus. aer consummatio

125scfm(3.5m³/min)

Summa materia

PP Acetal PVDF

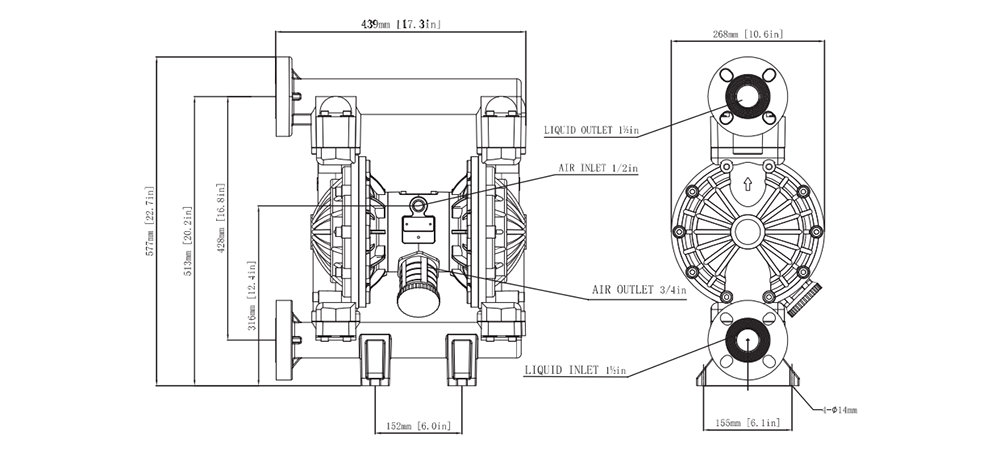

Installation magnitudine
