Kynar（PVDF） Diaphragma Pump

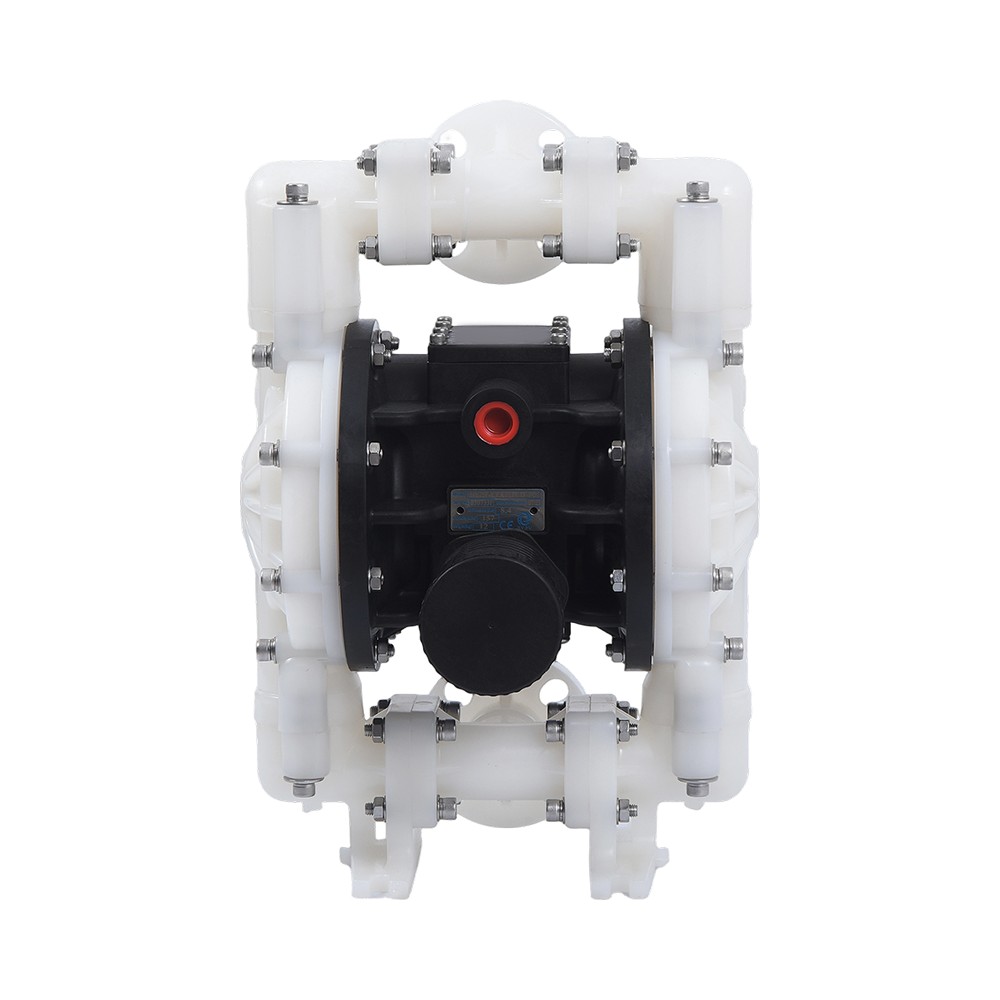

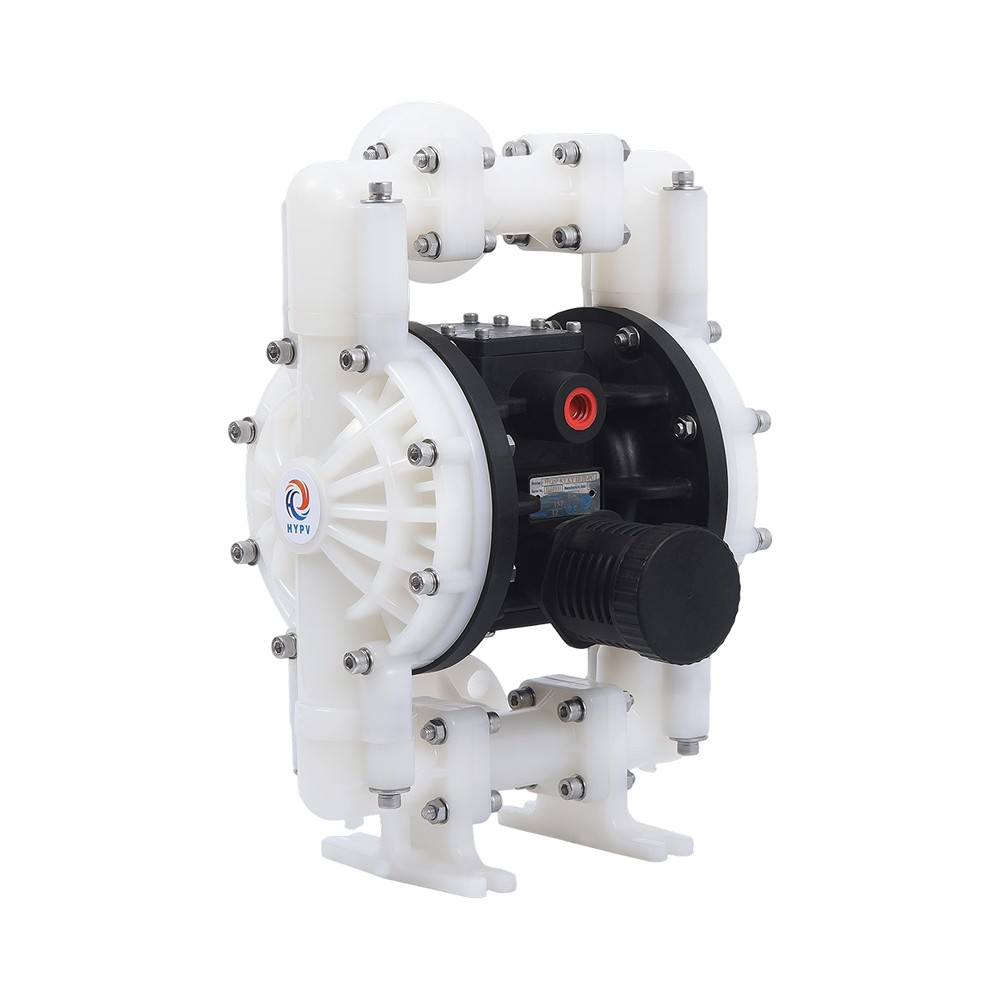

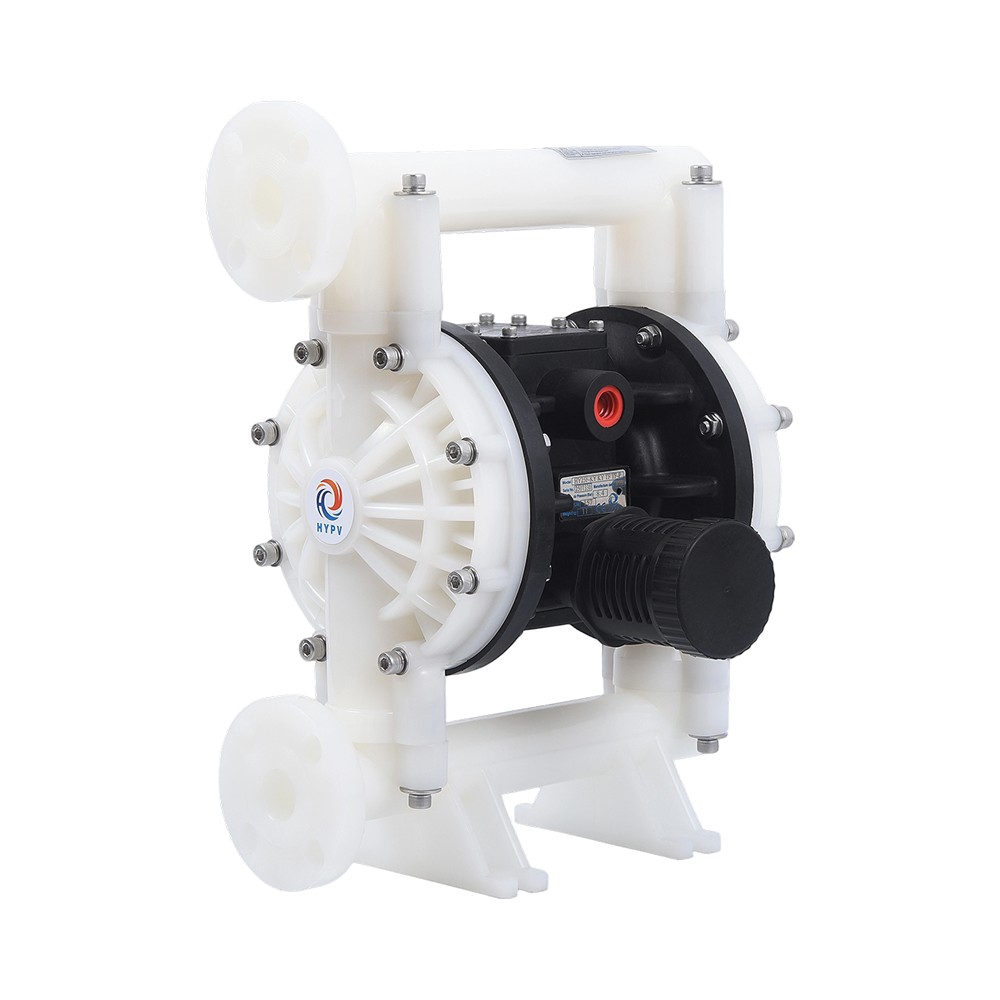

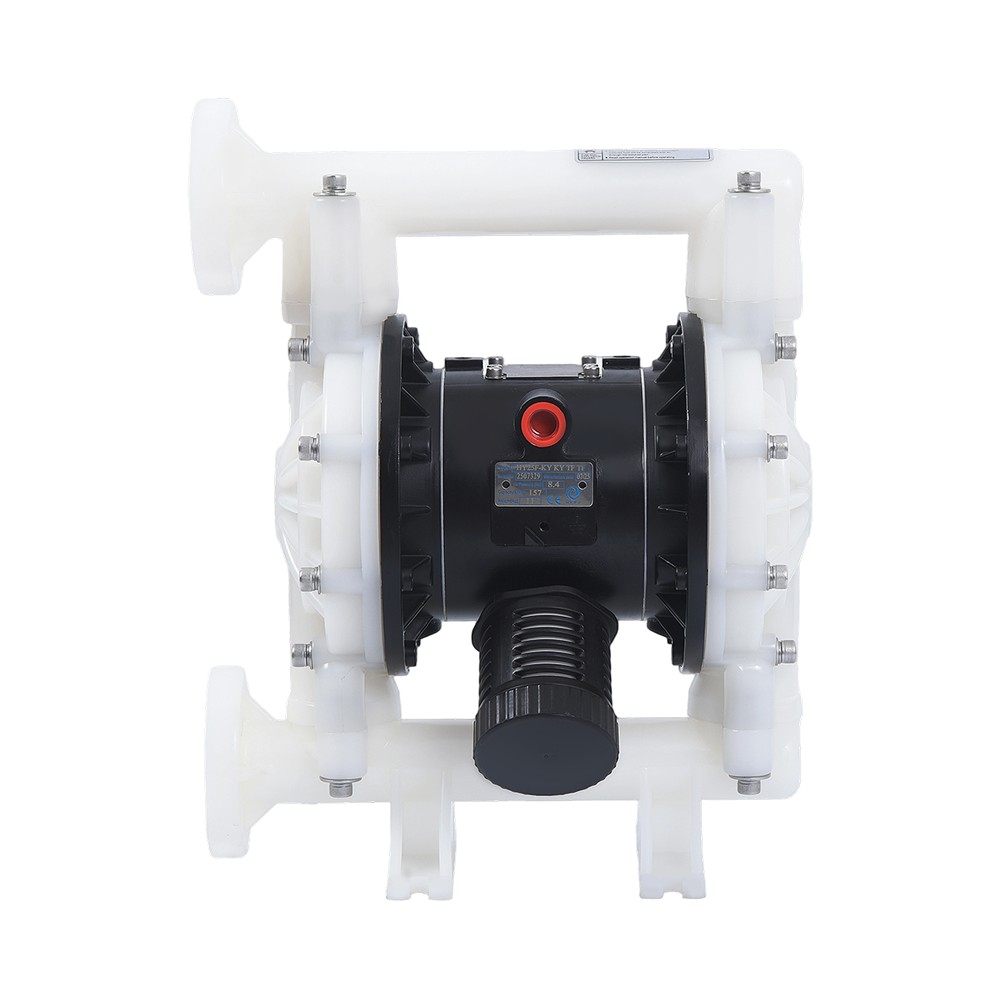

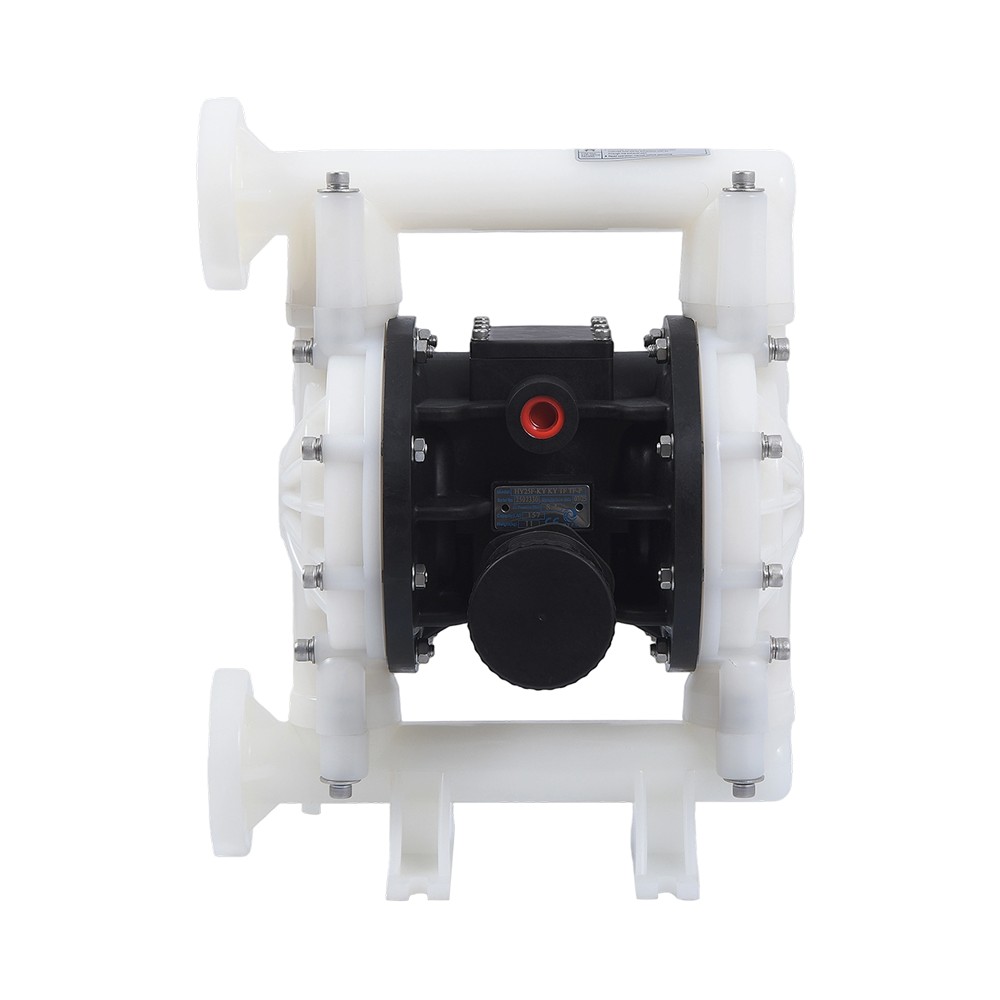

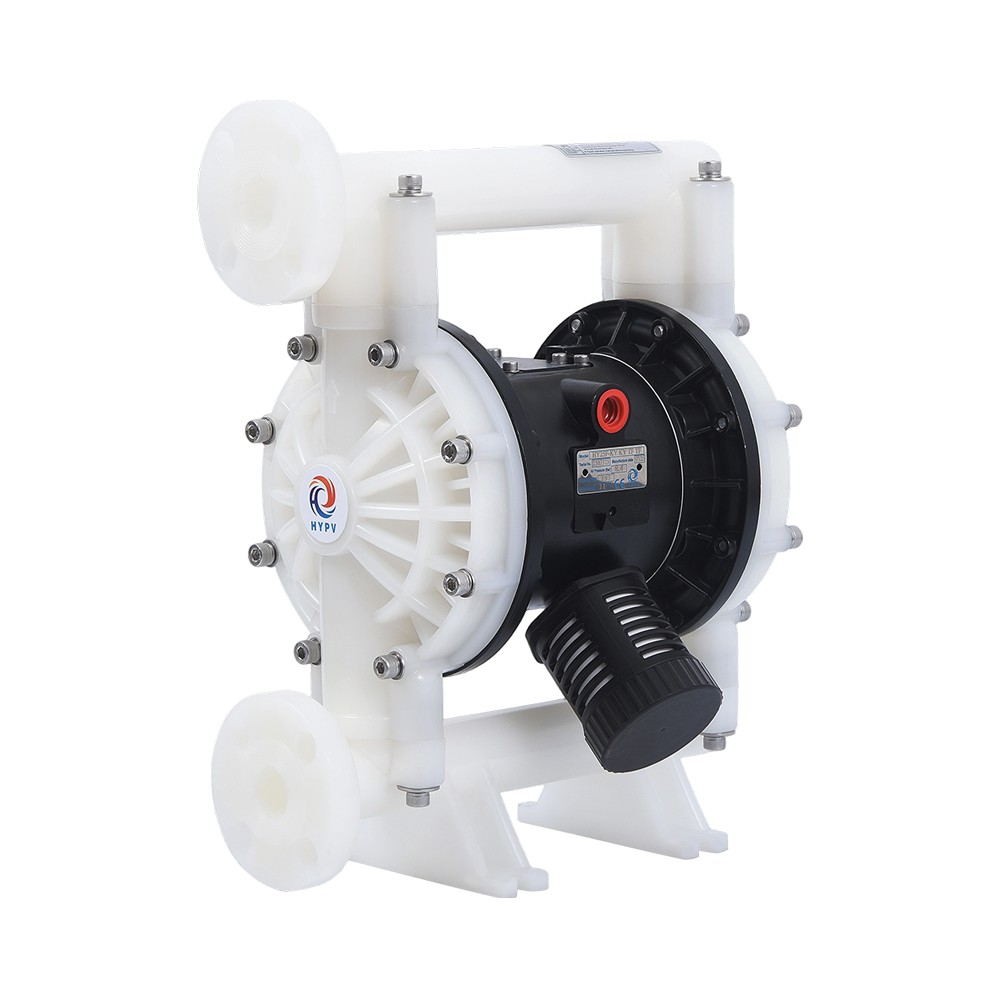

1" PVDF diaphragma laoreet

  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
PREV   |   DEINDE

+ Contact us

Product Description

Liquor lingua / exitus magnitudine

1"

Aeris diverticulum magnitudine

1/2"

Max vitae suctu

Arida: 4m Infectum: 8m

Max solidum transitum

4mm

Max fluxus rate

157L/min

Max partus caput

84m

Max aeris pressura

8.4bar

Max solidum transitum

4mm

Max aeris consummatio rate

60scfm (1.7m³/min)

Summa materia

PVDF

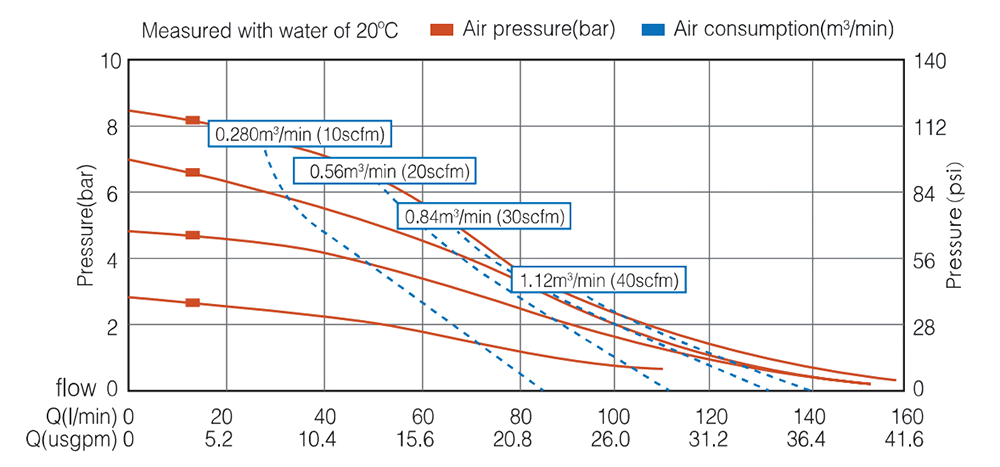

Curva euismod:

Technical parametri

Maximilianus. Suctionis Leva
Altitudo suctionis mutat cum diversis compagibus pilae, sedis et saeptum materiae.

arida 4m
infectum 8m

Maximilianus. particula diametri

4mm

Suctionis et missionis amplitudo

1in/Npt/F

Aeris diverticulum magnitudine

1/2in

Maximilianus. influunt rate

157 L/min

Maximilianus. caput

84m

Maximilianus. aeris lingua pressura

8.4bar

Maximilianus. aer consummatio

60scfm(1.7m³/min)

Summa materia

PP Acetal PVDF

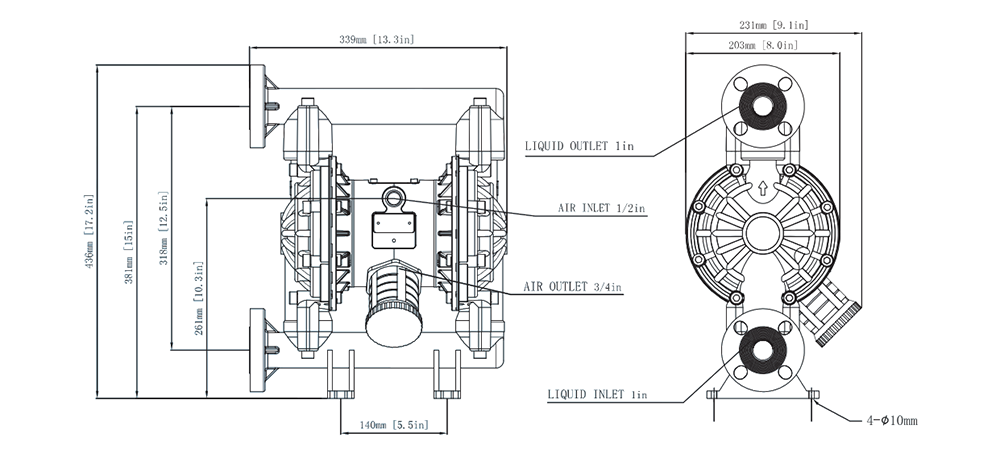

Installation magnitudine
